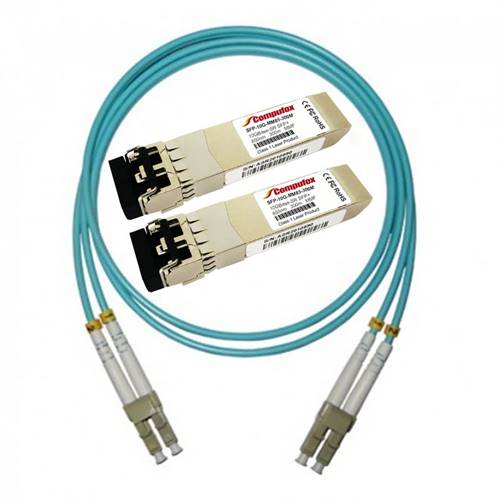

KIT - 10GB SFP+ to SFP+ with OM3 Cable for Cisco

This Kit Contains:

Two (2) 10GBASE-SR SFP+ Optical Transceiver Module (MMF, 850nm, 300m, LC, DOM):

Form Factor SFP+

Data Rate 10G

Wavelength 850nm

Cable Distance* 300m@OM3/400m@OM4

Connector Duplex LC

Cable Type MMF

Transmitter Type VCSEL

Receiver Type PIN

TX Power -7.3~-1dBm

Receiver Sensitivity < -11.1dBm

Power Budget 3.8dB

Receiver Overload -1dBm

Power Consumption <1W

Extinction Ratio >3dB

DDM/DOM Yes

Commercial Temperature 0 to 70°C

* Minimum cabling distance for SR modules is 2m, according to the IEEE 802.3ae.



One (1) Duplex OM3 10G 50/125 Multimode Fiber Optic Patch Cable:



  • High durability, more than 500 times mating
  • Low insertion loss and high return loss
  • High temperature stability
  • 100% optically tested
  • Individual package with detail information label
  • FOCIS-3 TIA/EIA-568-B.3 compliant
  • Fully compliant with standards of IEC and YD-T826/1996
